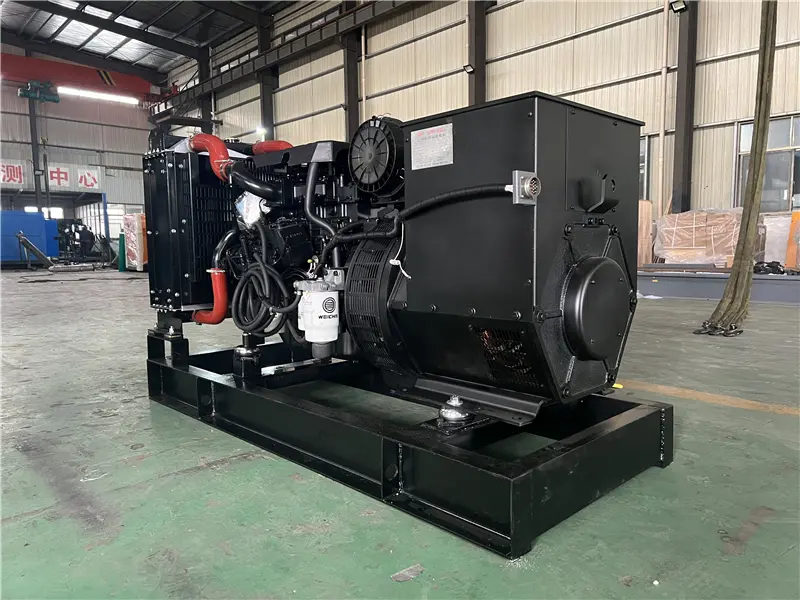

Diesel Generator Sets with WEICHAI Engines-XHZW Series03.jpg

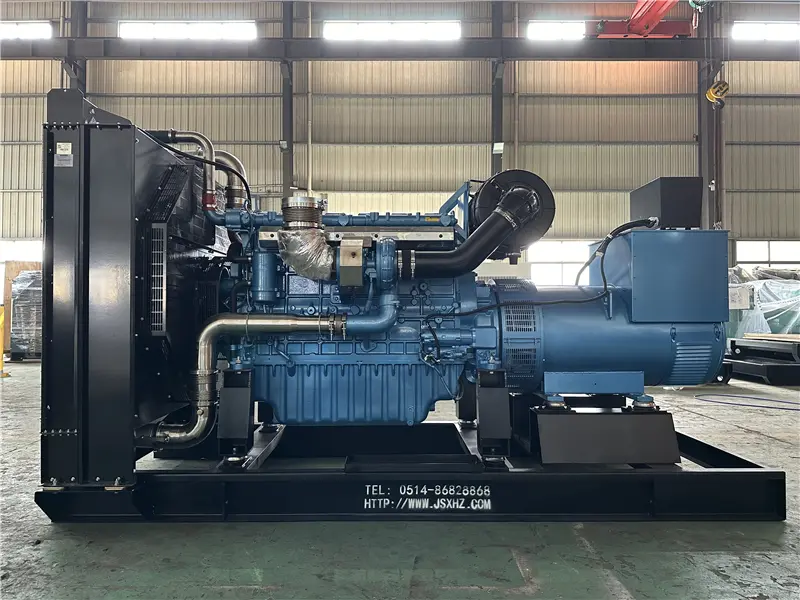

Diesel Generator Sets with WEICHAI Engines-XHZW Series02.jpg

Diesel Generator Sets with WEICHAI Engines

XHZW series diesel generator sets are powered by WEICHAI engines.
Power range 20kVA-4000kVA

● Powerful power system
● The engine adopts core technology independently developed by Weichai and has an output power range (20kva - 4000kva) to meet the power demand in multiple scenarios.
● It has high speed adjustment accuracy, smooth operation and excellent load bearing capacity.
● Efficient energy conversion
● Excellent fuel economy and low long-term operating costs.
● Superior environmental performance
● It complies with Euro V and China IV emission standards, and some models meet higher environmental protection requirements.
● The entire machine is made of high-quality components and has undergone rigorous testing, ensuring long-term stable operation.
● It has the ability to resist complex working conditions such as high temperature, high humidity, dust and vibration, and can adapt to a variety of harsh environments.

50HZ

60HZ

Features

Alternator

Control System

WEICHAI 50Hz 230V-400V

GENSETS	Standby Power		Prime Power		Engine type	Displacement (L)	Fuel consumption g/kw.h	Dimension	Weight
	kVA	kW	kVA	kW				LWH (mm)	kg
XHZW-20GF	18	23	16	20	WP2.3D25E200	2.3L	≤225	1400x800x1100	720
XHZW-30GF	26	33	24	30	WP2.3D33E200	2.3L	≤225	1400x800x1100	720
XHZW-38GF	33	41	30	38	WP2.3D40E200	2.3L	≤225	1450x800x1200	790
XHZW-40GF	40	50	36	45	WP2.3D48E200	2.3L	≤220	1600x800x1200	800
XHZW-60GF	55	69	50	63	WP4.1D66E200	4.1L	≤235	1700x800x1200	920
XHZW-80GF	70	88	64	80	WP4.1D80E200	4.1L	≤235	2200x900x1300	1000
XHZW-100GF	100	125	80	100	WP4.1D113E200	4.1L	≤235	2200x900x1300	1000
XHZW-125GF	120	150	100	125	WP6D132E200	6L	≤205	2200x900x1300	1500
XHZW-150GF	132	165	120	150	WP6D152E200	6L	≤205	2200x900x1500	1500
XHZW-175GF	150	188	140	175	WP6D167E200	6L	≤215	2400x900x1500	1500
XHZW-200GF	176	220	160	200	WP10D200E200	10L	≤215	2400x900x1500	1500
XHZW-230GF	200	250	184	230	WP10D238E200	10L	≤215	2400x900x1500	1500
XHZW-250GF	220	275	200	250	WP10D264E200	10L	≤215	2550x1000x1500	1800
XHZW-313GF	280	350	250	313	WP10D320E200	10L	≤205	2700x1100x1800	2500
XHZW-375GF	320	400	300	375	WP13D385E200	13L	≤210	3000x1100x1800	2700
XHZW-400GF	352	440	320	400	WP13D405E200	13L	≤215	3100x1100x1800	3000
XHZW-450GF	400	500	360	450	WP13D440E310	13L	≤215	3100x1100x1800	3500
XHZW-500GF	440	550	400	500	WP13D490E310	13L	≤215	3200x1300x1800	3800
XHZW-650GF	580	725	520	650	6M33D633E200	19	≤213	3700x1600x2250	4600
XHZW-650GF*	580	725	520	650	6M33D633E310	19	≤217	3700x1600x2250	3600
XHZW-675GF	600	750	540	675	6M33D670E200	19	≤215	3700x1600x2250	5500
XHZW-750GF	660	825	600	750	12M26D748E200	31	≤214	3700x1600x2250	6000
XHZW-800GF	720	900	640	800	8M33D800E200	26	≤210	3800x1800x2250	6100
XHZW-900GF	800	1000	720	900	8M33D890E200	26	≤210	3800x1800x2250	6100
XHZW-800GF	700	875	640	800	12M26D792E200	31	≤216	4600x1800x2300	6200
XHZW-900GF	800	1000	720	900	12M26D902E200	31	≤215	4600x1900x2300	7500
XHZW-1000GF	880	1100	800	1000	12M26D968E200	31	≤215	5300x2200x2500	7550
XHZW-1000GF	880	1100	800	1000	12M33D968E310	39	≤216	5300x2200x2500	7550
XHZW-1125GF	1000	1250	900	1125	12M33D1108E200	39	≤214	5400x2250x2600	9800
XHZW-1250GF	1100	1375	1000	1250	12M33D1210E200	39	≤213	5400x2250x2600	9800
XHZW-1375GF	1200	1500	1100	1375	12M33D1320E200	39	≤210	5400x2250x2600	9800
XHZW-1000GF	880	1100	800	1000	12M33D968E310	39	≤216	5300x2200x2500	7550
XHZW-1125GF	1000	1250	900	1125	12M33D1108E310	39	≤215	5400x2250x2500	9800
XHZW-1250GF	1100	1375	1000	1250	12M33D1240E310	39	≤215	5400x2250x2500	9800
XHZW-1375GF	1200	1500	1100	1375	12M33D1320E310	39	≤217	5400x2250x2500	9800
XHZW-1560GF	1400	1750	1250	1563	16M33D1530E310	52	≤215	6200x2150x2500	13000
XHZW-1690GF	1485	1856	1350	1688	16M33D1580E310	52	≤216	6300x2150x2500	13000
XHZW-1750GF	1520	1900	1400	1750	16M33D1680E310	52	≤210	6300x2150x2500	13500
XHZW-1875GF	1650	2063	1500	1875	16M33D1800E310	52	≤216	6400x2210x2500	13200
XHZW-1875GF	1650	2063	1500	1875	12M55D1870E310	39	≤215	6520x2210x2500	13200
XHZW-2000GF	1760	2200	1600	2000	12M55D2020E310	39	≤215	6520x2210x2500	13800
XHZW-2250GF	1980	2475	1800	2250	12M55D2200E310	39	≤210	6620x2210x2500	14000
XHZW-2500GF	2200	2750	2000	2500	12M55D2450E310	39	≤216	7000x2400x2600	22000

WEICHAI 60Hz 220V-480V

GENSETS	Standby Power		Prime Power		Engine type	Displacement (L)	Fuel consumption g/kw.h	Dimension	Weight
	kVA	kW	kVA	kW				LWH (mm)	kg
XHZW-25GF	24	30	20	25	WP2.3D30E201	2.3	≤210	15007501050	350
XHZW-38GF	33	41	30	38	WP2.3D41E201	2.3	≤216	15007501050	400
XHZW-44GF	40	50	35	44	WP2.3D47E201	2.3	≤215	15007501050	500
XHZW-50GF	50	63	40	50	WP2.3D58E201	2.3	≤215	18508001100	700
XHZW-75GF	66	83	60	75	WP4.1D80E201	4.1	≤210	19008701180	1000
XHZW-94GF	83	104	75	94	WP4.1D95E201	4.1	≤216	19008701180	1100
XHZW-110GF	100	125	90	113	WP4.1D115E201	4.1	≤215	22508801250	1200
XHZW-125GF	110	138	100	125	WP6D132E201	6	≤215	24009501510	1250
XHZW-150GF	132	165	120	150	WP6D158E201	6	≤210	24009501510	1200
XHZW-188GF	160	188	150	188	WP6D180E201	6	≤210	24009501510	1500
XHZW-188GF	165	206	150	188	WP10D200E201	10	≤216	285010401580	1550
XHZW-225GF	200	250	180	225	WP10D238E201	10	≤215	285010401580	1500
XHZW-250GF	220	280	200	250	WP10D264E201	10	≤215	305011001800	1800
XHZW-375GF	320	400	300	375	WP10D360E201	10	≤210	285010401580	2500
XHZW-375GF	330	413	300	375	WP13D385E201	13	≤210	335011501800	2700
XHZW-500GF	460	575	400	500	WP13D510E311	13	≤216	335011501800	3000
Weichai Series--Baudouin Engine
XHZW-563GF	500	625	450	563	6M33D572E201	19	≤210	380016002200	3800
XHZW-650GF	580	725	520	650	6M33D633E201	19	≤216	380016002200	4100
XHZW-688GF	600	750	550	688	6M33D670E201	19	≤215	410020002250	4300
XHZW-725GF	640	800	580	725	6M33D710E201	19	≤210	380016002200	4500
XHZW-750GF	660	825	600	750	6M33D740E311	19	≤216	380016002200	4700
XHZW-800GF	700	875	640	800	8M33D800E311	26	≤210	390018002200	5200
XHZW-800GF	800	1000	720	800	8M33D895E311	26	≤215	390018002200	5800
XHZW-1000GF	900	1125	800	1000	8M33D1012E311	26	≤216	400019002200	6300
XHZW-800GF*	700	875	640	800	12M26D792E201	31	≤215	410020002250	6400
XHZW-900GF*	800	1000	720	900	12M26D902E201	31	≤210	410020002250	6700
XHZW-1000GF	900	1100	800	1000	12M26D1012E201	31	≤216	440020002250	7500
XHZW-1000GF*	900	1100	800	1000	12M33D1012E201	39	≤215	470022002400	7600
XHZW-1125GF*	1000	1250	900	1125	12M33D1108E201	39	≤215	470022002400	8400
XHZW-1250GF*	1100	1375	1000	1250	12M33D1265E201	39	≤210	470022002400	9100
XHZW-1500GF	1320	1650	1200	1500	12M33D1320E201	39	≤215	470022002400	9500
XHZW-1625GF	1430	1800	1300	1625	12M33D1420E201	39	≤215	470022002400	11000
XHZW-1625GF	1430	1800	1300	1625	12M33D1420E201	39	≤210	470022002400	11500
XHZW-1750GF	1540	1925	1400	1750	16M33D1680E311	52	≤215	540022502500	12000
XHZW-1875GF	1650	2065	1500	1875	16M33D1785E311	52	≤210	540022502500	14000
XHZW-2188GF	1925	2400	1750	2188	16M33D1920E311	52	≤216	540022502500	15000
XHZW-2250GF	1980	2475	1800	2250	20M33D2230E311	65	≤215	540022502500	16000
XHZW-2500GF	2200	2750	2000	2500	20M33D2460E311	65	≤210	7000x2400x2600	16500
XHZW-2812GF	2500	3125	2250	2812	12M55D2700E311	65	≤218	7300x2400x2800	17000
XHZW-3000GF	2640	3300	2400	3000	16M55D2960E311	87	≤218	7500x2700x3000	19000
XHZW-3250GF	2800	3500	2600	3250	16M55D3150E311	87	≤218	7800x2700x3100	21000
XHZW-3375GF	3000	3750	2700	3375	16M55D3350E311	87	≤218	8000x2800x3200	22000
XHZW-3750GF	3300	4125	3000	3750	16M55D3600E311	87	≤218	8000x2800x3300	23000

Diesel Generator Sets with WEICHAI Engines-XHZW Series02

Standard Features

● XHZ POWER provides one-stop service to meet all customers' needs of power generation system and components.

● All generator sets and components undergo rigorous prototype testing, precise manufacturing and strict inspection.

● Warranty: after 1000 hours of running, or 1 year from the date of initial startup (whichever comes first).

Other Features

● Optional ATS (Automatic Transfer SwiXHZC-h) automatically swiXHZC-hes between the diesel generator and mains in the case of a power failure.

● Auto Synchronization System) enables multiple diesel generator sets to be synchronized and connected in parallel.

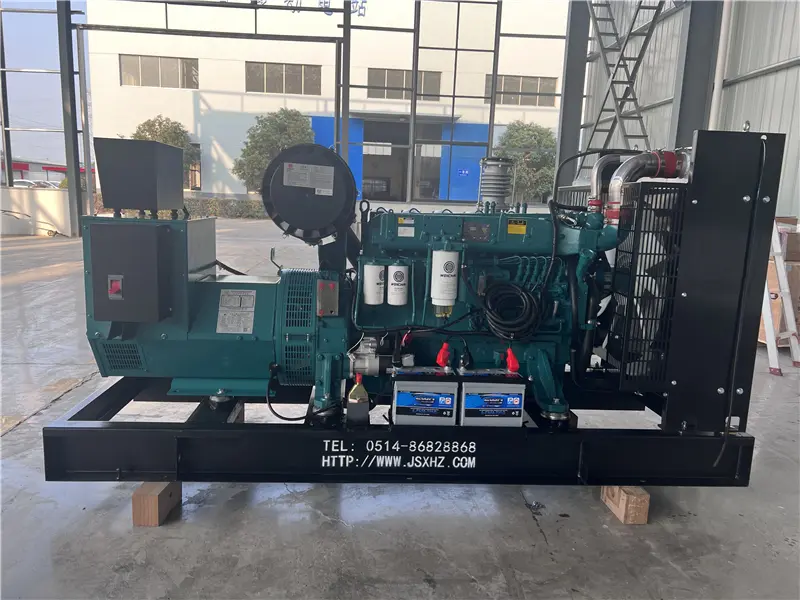

Diesel Generator Sets with WEICHAI Engines-XHZW Series06

Optional Alternator Brands

01

STAMFORD industrial alternators meet the requirements of the relevant parts of the IEC 60034 and the relevant sections of other international standards such as BS5000-3, ISO 8528-3, VDE 0530, NEMA MG1-32, CSA C22.2-100 and AS 60034. Other standards and certifications can be considered on request.
02

Leroy-Somer alternator has also obtained products specially designed for application in special fields or environmentsCertification from international organizations such as LCIE, DNV, INERIS, EFECTIS, UL, BSRIA, TUV, CCC, GOST, eXHZC-., ensures the quality of our products.All technical performance meets the certification standards and requirements.
03

The Marathon® brand encompasses a variaty of products and solutions, including single phase and three phase AC motors, NEMA and IEC motors, low and medium voltage motors and Generators.
04

The XHZ series generators comply with GB755, BS5000 Part III,VDE0530, NEMA MG1-32, IEC34-1, CSA C22.2-100, and AS1359.

SGC 420 CONTROLLER

The SGC 420 controller has an advanced battery charge management capability and is specially designed for AMF applications with a mechanical and electronically controlled engine

Standard Features

● Support automatic, manual and remote start/stop modes;

● Can supervise engine safety, electrical load, site battery backup voltage and shelter temperature to cut down on fuel consumption.

● The real time clock (RXHZC-) precisely logs up to 100 events and conducts data analysis.

● Auto exercise mode (2 events) allows to start and stop the generator set for for a preconfigured time.

● Built-in electronic speed governor is adopted for variable-speed monitoring.

● Able to monitor voltage, frequency, load current and power factor of the generator set.

● Provided with digital outputs of start relay, fuel relay, alarm horn and more.

● Counters for engine starts, engine trips, engine running hours, generator set kWh, kVAh, kVArh and Mains kWh, kVAh, kVArh.

Optional control system brands

DEEPSEA、COMAP、HGM....
